CodeGraph 安裝與使用教學：整合 Claude Code、Cursor、Codex 的程式碼圖譜工具
在大型程式項目中通常會透過不同手段來優化 llm token 的使用效益,本篇文章將介紹如何使用 codegraph
安裝 CLI
npm install -g @colbymchenry/codegraph
進入到項目中，安裝 codegraph，它會自動偵測並設定 Claude Code、Cursor、Codex
$ codegraph install

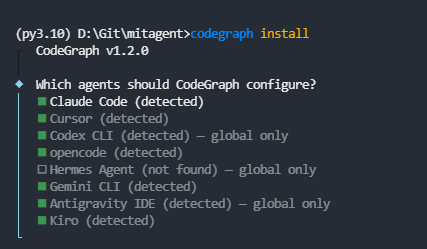

選擇對應 AI 模型
其餘選擇如下：
◇ Which agents should CodeGraph configure?
│ Claude Code (detected), Cursor (detected), Codex CLI (detected) — global only, opencode (detected), Gemini CLI (detected), Antigravity IDE (detected) — global only, Kiro (detected)
│
◇ Install the codegraph CLI on your PATH? (Required so agents can launch the MCP server)
│ Yes
│
◇ Installed codegraph CLI on PATH
│
◇ Apply agent configs to all your projects, or just this one?
│ Just this project
│
◇ Auto-allow CodeGraph commands? (Skips permission prompts in Claude Code)
│ Yes
│
◇ Share anonymous usage stats? (No code, paths, or names — see TELEMETRY.md)
│ Yes
│
● Thanks! Exactly what is collected: https://github.com/colbymchenry/codegraph/blob/main/TELEMETRY.md
│
◇ Front-load CodeGraph on “how / where / trace” prompts? Auto-injects structural context so answers need fewer steps (adds a moment to those prompts; Claude Code only).
│ Yes

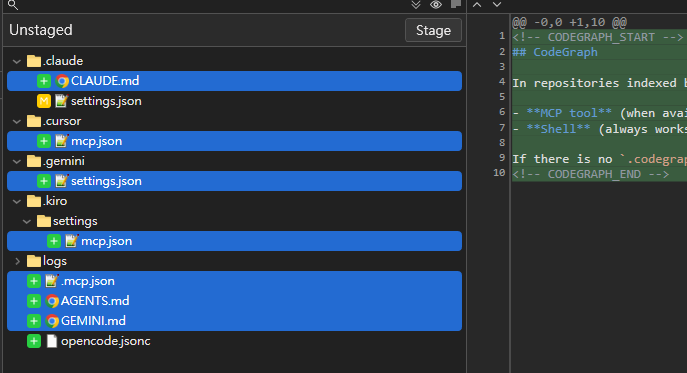

生成了這些檔案
建立程式碼索引
(py3.10) D:\Git\mitagent>codegraph init
┌ Initializing CodeGraph
│
◆ Initialized in D:\Git\mitagent
|
| * Scanning files - 25 found
| * Parsing code - done
| * Resolving refs - done
│
◆ Indexed 25 files
│
● 423 nodes, 982 edges in 721ms
│
└ Done查看目前 codegraph 狀態
(py3.10) D:\Git\mitagent>codegraph status
CodeGraph Status
Project: D:\Git\mitagent
Index Statistics:
Files: 25
Nodes: 423
Edges: 982
DB Size: 1.26 MB
Backend: node:sqlite - built-in (full WAL)
Journal: wal
Nodes by Kind:
function 127
import 81
method 58
constant 57
variable 34
file 25
class 23
interface 9
route 9
Files by Language:
python 12
javascript 11
tsx 2
[OK] Index is up to date
安裝完成後，AI Agent 會自動透過 MCP 查詢圖譜
| 指令 | 用途 |
|---|---|
codegraph status |
查看索引狀態 |
codegraph sync |
手動同步（通常不需要） |
codegraph uninit |
移除專案索引 |
codegraph uninstall |
從所有 Agent 移除設定 |
查某個函式的所有關係（呼叫者、被呼叫者）
(py3.10) D:\Git\mitagent>codegraph explore "ZOOM_SENSITIVITY"
**Exploration: ZOOM_SENSITIVITY**
Found 30 symbols across 2 files.
**Blast radius — what depends on these (update/verify before editing)**
- `ZOOM_SENSITIVITY` (screenshot/ref_GalaxyMap.tsx:84) — 2 callers in `screenshot/ref_GalaxyMap.tsx`; ⚠️ no covering tests found
- `ZOOM_SENSITIVITY` (static/js/constants.js:13) — 1 caller in `static/js/interaction.js`; ⚠️ no covering tests found
- `ZOOM_EASE_FACTOR` (screenshot/ref_GalaxyMap.tsx:86) — 2 callers in `screenshot/ref_GalaxyMap.tsx`; ⚠️ no covering tests found
- `MAX_ZOOM` (screenshot/ref_GalaxyMap.tsx:83) — 3 callers in `screenshot/ref_GalaxyMap.tsx`; ⚠️ no covering tests found
**Source Code**
> The code below is the **verbatim, current on-disk source** of these files — re-read from disk on this call and line-numbered, byte-for-byte identical to what the Read tool returns. It is NOT a summary, outline, or stale cache. Treat each block as a Read you have already performed: do not Read a file shown here.
**`screenshot/ref_GalaxyMap.tsx`** — MIN_ZOOM(constant), MAX_ZOOM(constant), ZOOM_SENSITIVITY(constant), ZOOM_EASE_FACTOR(constant), DEFAULT_ZOOM(constant)
tsx
const NODE_RADIUS = 6
const DEFAULT_COLOR = '#5a6a7a'
const LINE_COLOR = 'rgba(140, 170, 200, 0.6)'
const MIN_ZOOM = 0.001
const MAX_ZOOM = 50
const ZOOM_SENSITIVITY = 0.002
const STAR_COUNT = 800
const ZOOM_EASE_FACTOR = 0.15
const PAN_EASE_FACTOR = 0.12
**`static/js/constants.js`** — ZOOM_SENSITIVITY(constant), ZOOM_EASE_FACTOR(constant), MAX_ZOOM(constant)
javascript
/* === MitAgent — Constants & Configuration === */
// --- Canvas ---
export const BG_COLOR = '#050810';
export const NODE_RADIUS = 8;
export const NODE_RADIUS_HOVER = 11;
export const LABEL_ZOOM_THRESHOLD = 0.3;
// --- Camera ---
export const MIN_ZOOM = 0.15;
export const MAX_ZOOM = 5.0;
export const DEFAULT_ZOOM = 0.8;
export const ZOOM_SENSITIVITY = 0.001;
export const ZOOM_EASE_FACTOR = 0.15;
export const PAN_EASE_FACTOR = 0.12;
// --- Polling ---
export const POLL_INTERVAL = 2000; // ms
> Some file sections were trimmed for size. For a specific symbol you still need, run another `codegraph_explore` (or `codegraph_node`) with its exact name — line-numbered source, cheaper and more complete than Read.查某個檔案的依賴
(py3.10) D:\Git\mitagent>codegraph node static\js\api.js
**static/js/api.js** — 73 lines, 6 symbols · used by 1 file: static/js/app.js
/* === MitAgent — API Fetch Wrappers === */
const API_BASE = ''; // Same origin — FastAPI serves both API and static
/**
* Fetch the full graph topology (all nodes + edges, no proof content).
* Used once at startup for stable layout computation.
*/
export async function fetchTopology() {
const res = await fetch(`${API_BASE}/graph/topology`);
if (!res.ok) throw new Error(`Topology fetch failed: ${res.status}`);
return res.json();
}
/**
* Create a new game session.
* @param {number} maxTurns - Turn budget (default 20)
* @returns {{session_id: string, observation: object}}
*/
export async function newGame(maxTurns = 20) {
const res = await fetch(`${API_BASE}/game/new?max_turns=${maxTurns}`, {
method: 'POST',
});
if (!res.ok) throw new Error(`New game failed: ${res.status}`);
return res.json();
}
/**
* Get current world observation for a session.
* @param {string} sessionId
* @returns {ObserveResponse}
*/
export async function observe(sessionId) {
const res = await fetch(`${API_BASE}/game/${sessionId}/observe`);
if (!res.ok) throw new Error(`Observe failed: ${res.status}`);
return res.json();
}
/**
* Submit an action (prove / connect / move).
* @param {string} sessionId
* @param {string} actionType - 'prove' | 'connect' | 'move'
* @param {string|null} theoremId
* @param {string|null} reasoning
* @param {string|null} targetId
* @returns {ActionResponse}
*/
export async function submitAction(sessionId, actionType, theoremId = null, reasoning = null, targetId = null) {
const body = { action_type: actionType };
if (theoremId) body.theorem_id = theoremId;
if (reasoning) body.reasoning = reasoning;
if (targetId) body.target_id = targetId;
const res = await fetch(`${API_BASE}/game/${sessionId}/action`, {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify(body),
});
if (!res.ok) throw new Error(`Action failed: ${res.status}`);
return res.json();
}
/**
* Get score breakdown for a session.
* @param {string} sessionId
* @returns {ScoreResponse}
*/
export async function fetchScore(sessionId) {
const res = await fetch(`${API_BASE}/game/${sessionId}/score`);
if (!res.ok) throw new Error(`Score fetch failed: ${res.status}`);
return res.json();
}
